Modular Deep Reinforcement Learning framework in PyTorch.

BeamRider	Breakout	Enduro	Pong
Qbert	Seaquest	SpaceInvaders

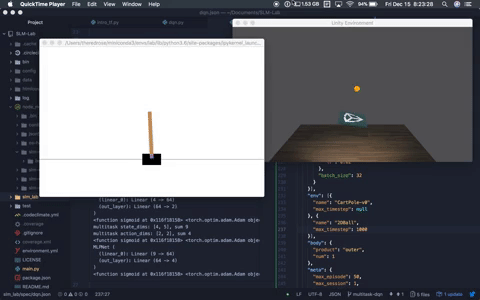

Multitask DQN solving OpenAI Cartpole-v0 and Unity Ball2D.	DQN Atari Pong solution in SLM Lab.	DDQN Lunar solution in SLM Lab.

SLM Lab is created for deep reinforcement learning research and applications. The design was guided by four principles

• modularity
• simplicity
• analytical clarity
• reproducibility

• makes research easier and more accessible: reuse well-tested components and only focus on the relevant work
• makes learning deep RL easier: the algorithms are complex; SLM Lab breaks them down into more manageable, digestible components
• components get reused maximally, which means less code, more tests, and fewer bugs

• the components are designed to closely correspond to the way papers or books discuss RL
• modular libraries are not necessarily simple. Simplicity balances modularity to prevent overly complex abstractions that are difficult to understand and use

• hyperparameter search results are automatically analyzed and presented hierarchically in increasingly granular detail
• it should take less than 1 minute to understand if an experiment yielded a successful result using the experiment graph
• it should take less than 5 minutes to find and review the top 3 parameter settings using the trial and session graphs

• only the spec file and a git SHA are needed to fully reproduce an experiment
• all the results are recorded in BENCHMARK.md
• experiment reproduction instructions are submitted to the Lab via result Pull Requests
• the full experiment datas contributed are public on Dropbox

• numerous canonical algorithms (listed below)
• reusable and well-tested modular components: algorithm, network, memory, policy
• simple and easy to use for building new algorithms

• supports multiple environments:
  • OpenAI gym
  • VizDoom (credit: joelouismarino)
  • Unity environments with prebuilt binaries
  • contributions welcome!
• supports multi-agents, multi-environments
• API for adding custom environments

• scalable hyperparameter search using ray
• analytical clarity with auto-generated results and graphs at session, trial, experiment levels
• fitness metric as a richer measurement of an algorithm's performance

SLM Lab implements most of the recent canonical algorithms and various extensions. These are used as the base of research. All the implementations follow this design:

• Agent: the base class containing all the components. It has the API methods to interface with the environment.

  • Algorithm: the main class containing the implementation details of a specific algorithm. It contains components that are reusable.
    • Net: the neural network for the algorithm. An algorithm can have multiple networks, e.g. Actor-Critic, DDQN.
  • Body: connects the agent-env, and stores the proper agent-env data, such as entropy/log_prob. Multitask agent will have multiple bodies, each handling a specific environment. Conversely, a multiagent environment will accept multiple bodies from different agents. Essentially, each body keeps track of an agent-env pair.
    • Memory: stores the numpy/plain type data produced from the agent-env interactions used for training.

• BaseEnv: the environment wrapper class. It has the API methods to interface with the agent. Currently, the Lab contains:

  • OpenAIEnv for OpenAI gym
  • UnityEnv for Unity ML-Agents

code: slm_lab/agent/algorithm

Various algorithms are in fact extensions of some simpler ones, and they are implemented as such. This allows for concise and safer code.

Policy Gradient:

• REINFORCE
• AC (Vanilla Actor-Critic)
  • shared or separate actor critic networks
  • plain TD
  • entropy term control
• A2C (Advantage Actor-Critic)
  • extension of AC with with advantage function
  • N-step returns as advantage
  • GAE (Generalized Advantage Estimate) as advantage
• PPO (Proximal Policy Optimization)
  • extension of A2C with PPO loss function
• SIL (Self-Imitation Learning)
  • extension of A2C with off-policy training on custom loss
• PPOSIL
  • SIL with PPO instead of A2C

Using the lab's unified API, all the algorithms can be distributed hogwild-style. Session takes the role of workers under a Trial. Some of the distributed algorithms have their own name:

• A3C (Asynchronous A2C / distributed A2C)
• DPPO (Distributed PPO)

Value-based:

• SARSA
• DQN (Deep Q Learning)
  • boltzmann or epsilon-greedy policy
• DRQN (DQN + Recurrent Network)
• Dueling DQN
• DDQN (Double DQN)
• DDRQN
• Dueling DDQN
• Hydra DQN (multi-environment DQN)

As mentioned above, all these algorithms can be turned into distributed algorithms too, although we do not have special names for them.

Below are the modular building blocks for the algorithms. They are designed to be general, and are reused extensively.

code: slm_lab/agent/memory

Memory is a numpy/plain type storage of data which gets reused for more efficient computations (without having to call tensor.detach() repeatedly). For storing graph tensor with the gradient, use agent.body.

Note that some particular types of algorithm/network need particular types of Memory, e.g. RecurrentNet needs any of the SeqReplay. See the class definition for more.

For on-policy algorithms (policy gradient):

• OnPolicyReplay
• OnPolicySeqReplay
• OnPolicyBatchReplay
• OnPolicySeqBatchReplay
• OnPolicyConcatReplay
• OnPolicyAtariReplay
• OnPolicyImageReplay (credit: joelouismarino)

For off-policy algorithms (value-based)

• Replay
• SeqReplay
• SILReplay (special Replay for SIL)
• SILSeqReplay (special SeqReplay for SIL)
• ConcatReplay
• AtariReplay
• ImageReplay
• PrioritizedReplay
• AtariPrioritizedReplay

code: slm_lab/agent/net

These networks are usable for all algorithms, and the lab takes care of the proper initialization with proper input/output sizing. One can swap out the network for any algorithm with just a spec change, e.g. make DQN into DRQN by substituting the net spec "type": "MLPNet" with "type": "RecurrentNet".

• MLPNet (Multi Layer Perceptron, with multi-heads, multi-tails)
• RecurrentNet (with multi-tails support)
• ConvNet (with multi-tails support)

These networks are usable for Q-learning algorithms. For more details see this paper.

• DuelingMLPNet
• DuelingConvNet

code: slm_lab/agent/algorithm/policy_util.py

The policy module takes the network output pdparam, constructs a probability distribution, and samples for it to produce actions. To use a different distribution, just specify it in the algorithm spec "action_pdtype".

• different probability distributions for sampling actions
• default policy
• Boltzmann policy
• Epsilon-greedy policy
• numerous rate decay methods

Deep Reinforcement Learning is highly empirical. The lab enables rapid and massive experimentations, hence it needs a way to quickly analyze data from many trials. The experiment and analytics framework is the scientific method of the lab.

Experiment graph summarizing the trials in hyperparameter search.

Trial graph showing average envelope of repeated sessions.

Session graph showing total rewards, exploration variable and loss for the episodes.

1. Clone the SLM-Lab repo:

   git clone https://github.com/kengz/SLM-Lab.git

2. Install dependencies (or inspect bin/setup_* first):

   cd SLM-Lab/
   bin/setup
   yarn install
   conda activate lab

Alternatively, run the content of bin/setup_macOS or bin/setup_ubuntu on your terminal manually. Docker image and Dockerfile with instructions are also available

Useful reference: Debugging

To update SLM Lab, pull the latest git commits and run update:

git pull
conda env update -f environment.yml; yarn install;

Alternatively, use the shorthand command yarn update to replace the last line

Run the demo to quickly see the lab in action (and to test your installation).

It is DQN in CartPole-v0:

1. see slm_lab/spec/demo.json for example spec:

   "dqn_cartpole": {
     "agent": [{
       "name": "DQN",
       "algorithm": {
         "name": "DQN",
         "action_pdtype": "Argmax",
         "action_policy": "epsilon_greedy",
       ...
       }
     }]
   }

2. see config/experiments.json to schedule experiments:

   "demo.json": {
     "dqn_cartpole": "dev"
   }

   To run faster, change lab mode from "dev" to "train" above and rendering will be disabled.

3. launch terminal in the repo directory, run the lab:

   conda activate lab
   python run_lab.py

   Alternatively, use the shorthand command yarn start to replace the last line To access GUI from remove server, use -X flag during ssh like so ssh -X foo@bar. See Debugging for more.

4. This demo will run a single trial using the default parameters, and render the environment. After completion, check the output for data data/dqn_cartpole_2018_06_16_214527/ (timestamp will differ). You should see some healthy graphs.



   Trial graph showing average envelope of repeated sessions.



   Session graph showing total rewards, exploration variable and loss for the episodes.

5. Enjoy mode - when a session ends, a model file will automatically save. You can find the session prepath that ends in its trial and session numbers. The example above is trial 1 session 0, and you can see a pyotrch model saved at data/dqn_cartpole_2018_06_16_214527/dqn_cartpole_t1_s0_model_net.pth. Use the prepath at config/experiments.json to run enjoy mode:

   "demo.json": {
     "dqn_cartpole": "enjoy@data/dqn_cartpole_2018_06_16_214527/dqn_cartpole_t1_s0"
   }

   Enjoy mode will automatically disable learning and exploration. Graphs will still save.

   To run the best model, use the best saved checkpoint enjoy@data/dqn_cartpole_2018_06_16_214527/dqn_cartpole_t1_s0_ckptbest

6. Next, change the run mode from "train" to "search" config/experiments.json, and rerun. This runs experiments of multiple trials with hyperparameter search. Environments will not be rendered.:

   "demo.json": {
     "dqn_cartpole": "search"
   }

   When it ends, refer to {prepath}_experiment_graph.png and {prepath}_experiment_df.csv to find the best trials.

If the demo fails, consult Debugging.

Now the lab is ready for usage.

Read on: Github | Documentation

If you use SLM-Lab in your research, please cite below:

@misc{kenggraesser2017slmlab,
    author = {Wah Loon Keng, Laura Graesser},
    title = {SLM-Lab},
    year = {2017},
    publisher = {GitHub},
    journal = {GitHub repository},
    howpublished = {\url{https://github.com/kengz/SLM-Lab}},
}

SLM Lab is an MIT-licensed open source project. Contributions are very much welcome, no matter if it's a quick bug-fix or new feature addition. Please see CONTRIBUTING.md for more info.

If you have an idea for a new algorithm, environment support, analytics, benchmarking, or new experiment design, let us know.

If you're interested in using the lab for research, teaching or applications, please contact the authors.
